The Critical Role of UHP Graphite Electrodes in Modern Steelmaking

UHP graphite electrodes (Ultra-High Power graphite electrodes) are the unsung heroes of electric arc furnace (EAF) steelmaking—enabling faster, cleaner, and more efficient production of high-quality steel. Designed to withstand extreme current densities exceeding 25 A/cm² (and often up to 30–40 A/cm²), UHP electrodes are the backbone of industrial metallurgy for alloy steel, silicon metal, and other advanced materials12. Here’s why they are indispensable in today’s manufacturing landscape.

What Makes an Electrode “UHP”?

Unlike standard electrodes, UHP graphite electrodes meet stringent performance benchmarks:

Electrical Performance: Resistivity <5.8 μΩ·m (vs. HP’s <7.2 μΩ·m and RP’s <9.0 μΩ·m)1
Mechanical Strength: Bending strength >18.3 MPa (vs. HP’s >10.5 MPa)1
Thermal Resilience: Extremely low CTE (~1.5×10⁻⁶/°C) to resist cracking under rapid thermal shifts1
These properties allow UHP electrodes to sustain ultra-high current loads while minimizing breakage and energy loss.

The Manufacturing Edge: Precision from Raw Material to Graphitization

Producing UHP electrodes demands mastery of materials science and process control:

1. Raw Materials Dictate Quality

Needle Coke Selection: Petroleum-based needle coke (not coal-based) is essential for low CTE and high conductivity. Its ordered crystalline structure ensures structural stability under thermal stress110.
Specialized Binders: Modified pitch binders (softening point: 108–112°C, TI: 28–30%) enhance density and reduce porosity during baking1.
Low-QI Impregnation Pitch: Critical for pore-filling efficiency (QI ≤0.5%), directly boosting density and conductivity1.

2. Optimized Production Workflow

To balance cost and performance, top manufacturers adopt a shortened "1-impregnation, 2-baking" process for electrode bodies:

Efficiency Gains: Reduces production time by 15–30 days and cuts costs by ~¥2,000/ton versus outdated "3-impregnation, 4-baking" methods110.
Performance Preservation: Fewer impregnations prevent excessive elastic modulus growth, which otherwise degrades thermal shock resistance1.

Table: UHP Electrode Production Process Innovations

Process Stage	Traditional Approach	Advanced UHP Optimization
Impregnation	2–3 cycles	1 cycle (body), 3 cycles (nipple)
Baking	3–4 cycles	2 cycles (body), 4 cycles (nipple)
Graphitization	2,800–3,000°C conventional	LWG internal series graphitization at 35–40 A/cm² core density8

3. Graphitization Breakthroughs

Internal series graphitization (LWG) revolutionizes quality:

Direct current application achieves homogeneous heating with core temperatures >2,800°C.
Precision alignment (±10 mm straightness tolerance over 50m) ensures uniform current distribution8.

Why UHP Electrodes Outperform HP/RP in Critical Applications

Energy Efficiency: UHP electrodes enable 22% lower power consumption per ton of steel compared to conventional electrodes1.
Productivity: Melt times shorten by 50%, boosting furnace output by 1.5x1.
Durability: Higher mechanical strength (>18.3 MPa) and optimized CTE reduce breakage in high-arc-stability operations25.

Real-World Impact: The Steelmaker’s Advantage

High-Current Operations: UHP electrodes support >30 A/cm² in modern EAFs—essential for producing specialty steels and alloys1.
Oxidation Resistance: Coatings (e.g., antioxidant layers) further cut consumption by 19–50% and extend service life by 22–60%5.
Case Study: One steel mill reduced annual electrode consumption by 373 electrodes (153 tons), saving ¥2.58 million/year after switching to coated UHP electrodes5.

The Future: Bigger, Cleaner, Smarter Electrodes

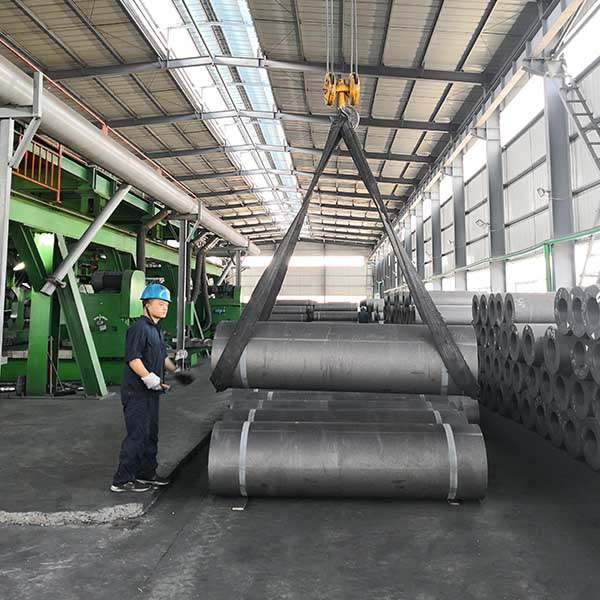

Jumbo Sizes: Demand is rising for electrodes >Φ600mm to service mega-furnaces. Manufacturers like Shida Carbon already supply these25.
Green Manufacturing: Innovations like closed-loop baking furnaces and emissions scrubbing address environmental challenges (VOC/particulate control)4.
Digital Integration: IoT-enabled process monitoring ensures real-time quality control during graphitization—critical for consistency8.

Conclusion: UHP Electrodes—The Non-Negotiable Backbone of Efficient Steelmaking

UHP graphite electrodes are not merely components; they are strategic enablers of sustainable, high-output metallurgy. As EAFs grow larger and currents intensify, the precision behind these electrodes—from petroleum coke sourcing to LWG graphitization—will only grow more critical.
